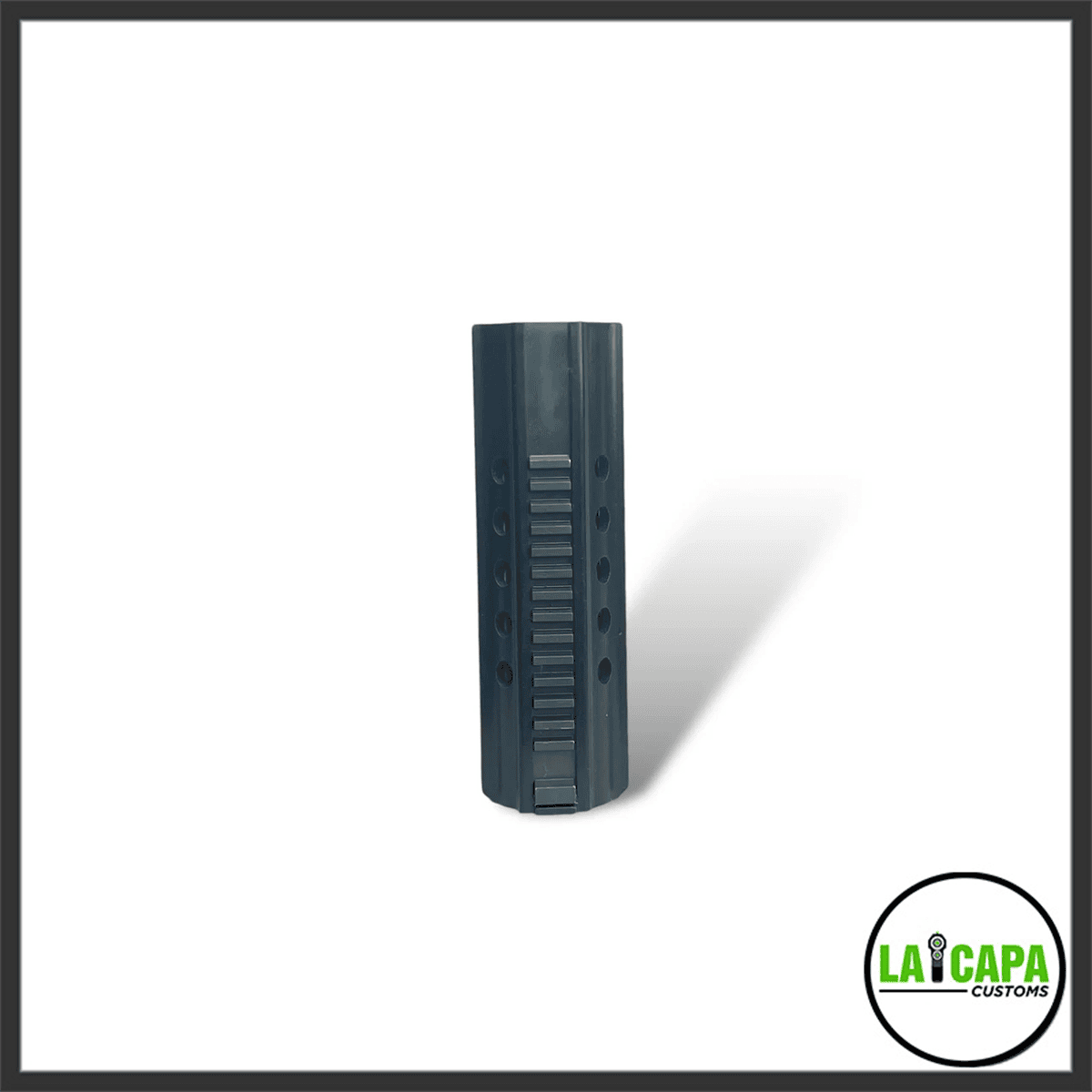

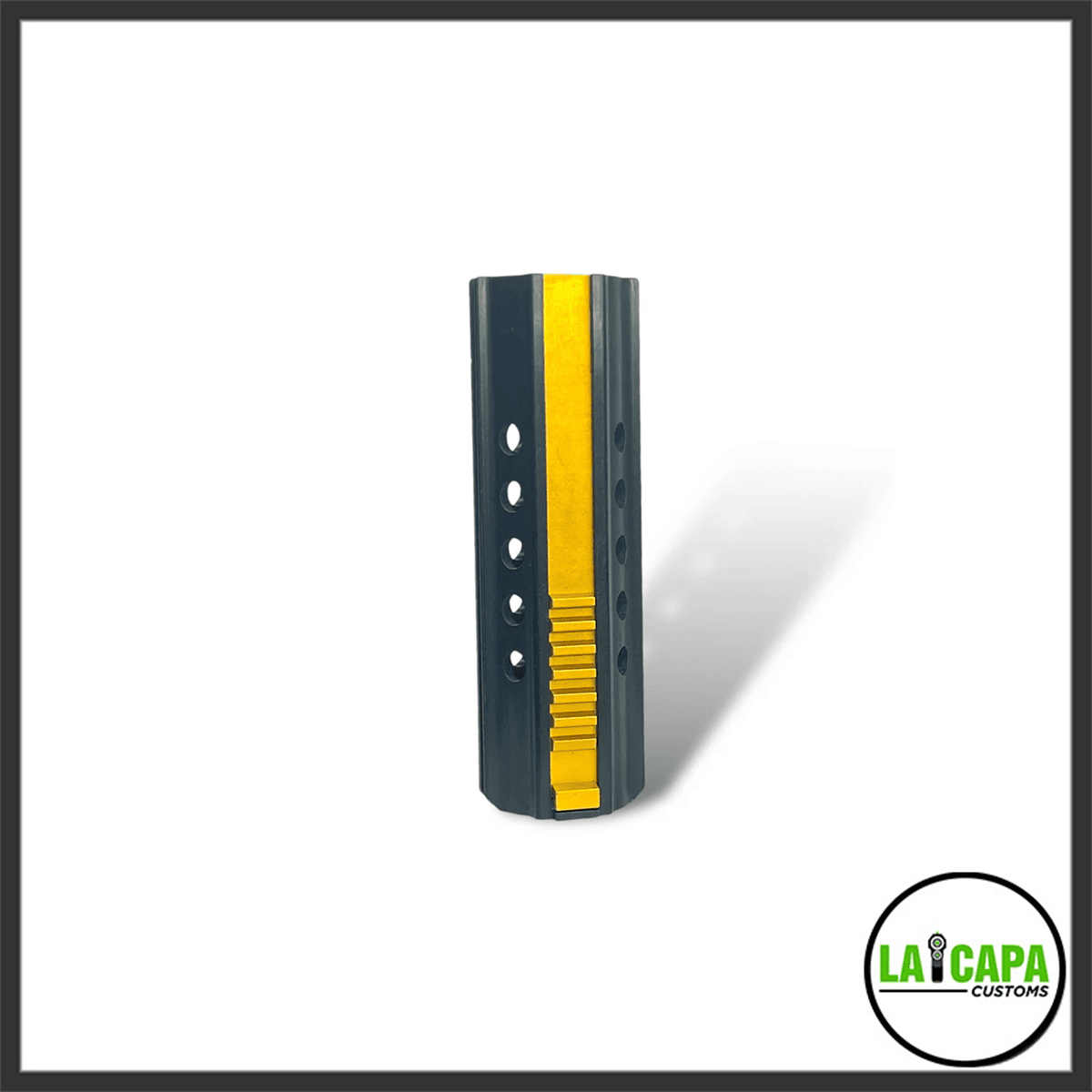

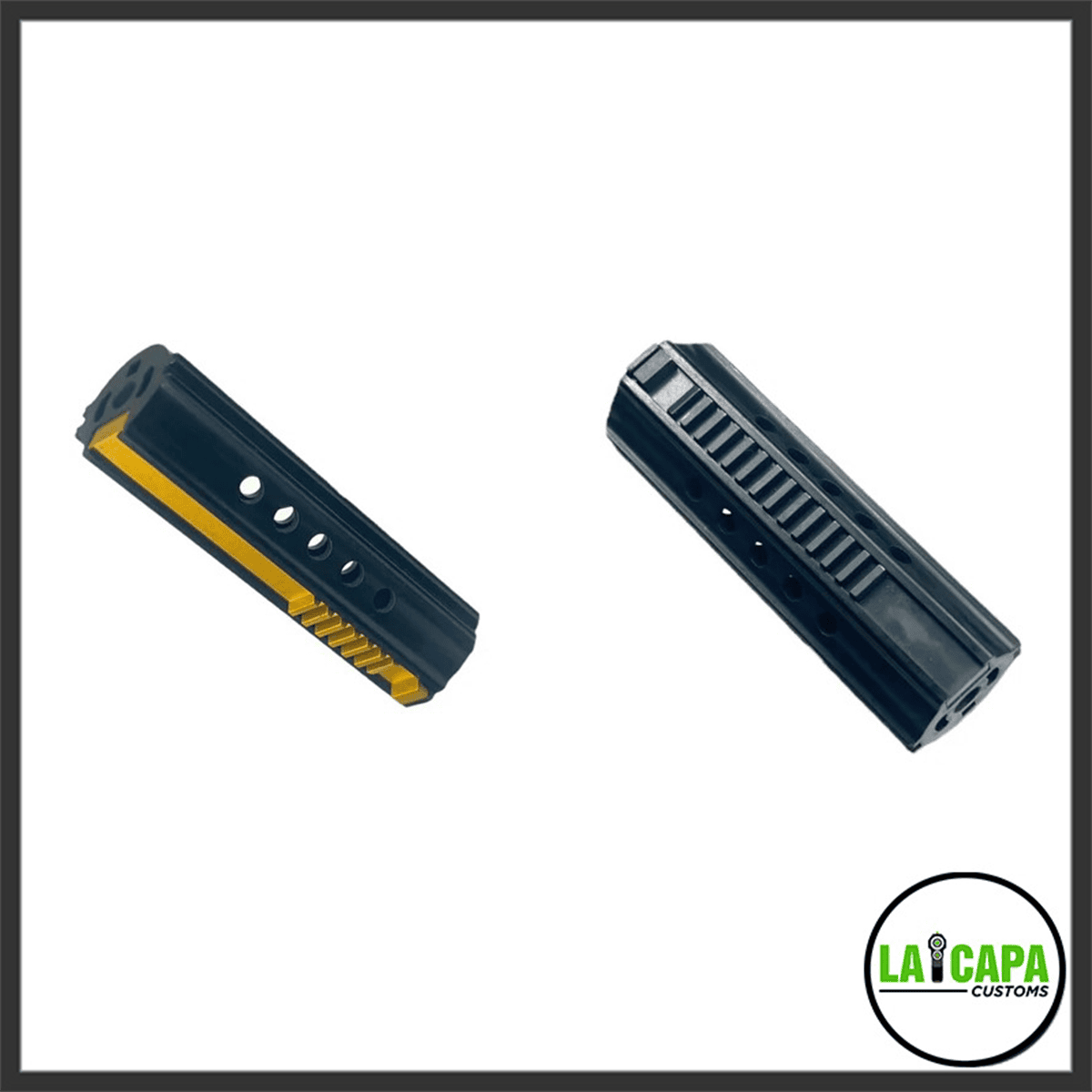

Real Deal Ultimate Performance Piston (Body only)

The Real Deal Airsoft Ultimate Performance Piston Assembly

Available Variants:

• Single Sector Gear (SSG)
• Dual Sector Gear (DSG)

---

Key Features:

1. High-Strength Materials:
   • Made from a proprietary polycarbonate blend combined with two polymers to absorb shock.
   • Tested to over 300,000 cycles at 400 FPS and 52 RPS.
2. Pre-AOE Corrected Design:
   • 3mm longer than standard TM spec pistons.
   • 100% drop-in ready without requiring washers or spacers.
3. Proprietary Rack Design:
   • Redesigned pickup tooth dimensions.
   • SSG Racks: Black premium coating for supreme wear resistance.
   • DSG Racks: Titanium Nitride (TiN) coating to monitor wear over time.
   • DSG racks feature 7 teeth removed for improved integrity and weight savings.
4. Skeletonized Body:
   • 28 high-speed cutouts for weight reduction.
   • Weighs only 15.8g (DSG) and 16.5g (SSG).
5. Offset Rack for Better Efficiency:
   • Rack is raised and offset for improved energy transfer.
6. Grease Retaining Rails:
   • Full-length rails for increased piston stability at high speeds.
   • Grooves in the rails aid in carrying grease to reduce friction.
7. Surface Treatments:
   • Metal-injected Chromoly steel rack with heat treatment for durability.
   • Special coatings enhance longevity and reduce friction.
8. Wide Compatibility:
   • Tested with all Retro 2024 Gearbox Spec and Retro Arm Gearsets.
   • Engineered to avoid lock-ups or increased friction with Retro-modified gearboxes.

---

Product Specifications:

• Material: High-strength polycarbonate blend.
• Coatings: TiN (DSG) and premium black finish (SSG).
• Width: 22mm for compatibility with nearly all gearboxes.
• Compatibility:
  • Gearboxes: Retro (new and old), Lancer, G&G, Krytac, Cyma (old and Platinum), G&P, Ares EFS, ICS Split, VFC.
• Additional Features:
  • Pre-AOE corrected.
  • High-strength heat-treated Chromoly rack.
  • Full grease-retaining rails.

---

Tech Tips:

1. Bonding the Rack:
   • Brushless Builds: Bond the rack to the piston using glue or epoxy.
     • Apply glue to rails near the pickup tooth support area.
     • Tap the rack into place using a flat tool.
   • Brushed Builds: Bonding is optional but recommended.
   • Use thread locker on the piston head screw.
2. Piston Heads:
   • Builds up to 30-32 RPS: Use Real Deal CNC Piston Head.
   • Builds 32+ RPS: Use FPS SoftAir Piston Head or lightweight POM head.
   • Brushless DSG builds require FPS SoftAir Piston Head.
3. Rack Removal and Fitment:
   • For tight fits, insert a flat tool between rack teeth to loosen.
   • Ensure the rack is fully seated before final installation.

---

Confirmed Compatibility:

• Gearboxes:
  • Retro (new and old), Lancer, G&G, Krytac, Cyma (old and Platinum), G&P, Ares EFS, ICS Split, VFC.
