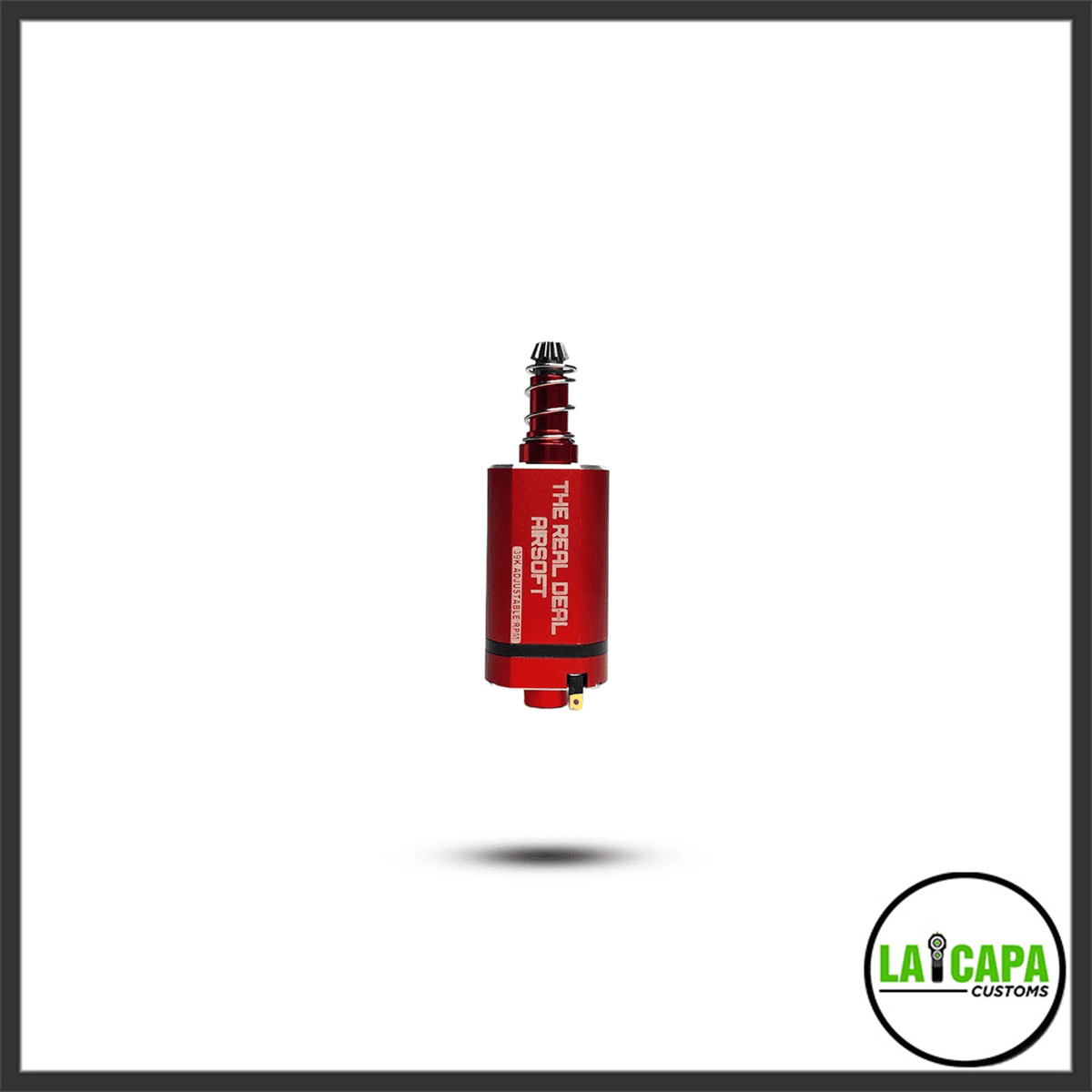

Real Deal Brushless 39k Adjustable Motor

The Real Deal Airsoft 39K Adjustable RPM Brushless Motor

Key Benefits:

• Top-of-the-Line Performance:
  • Provides the best efficiency and performance for AEG systems.
  • Ideal for maximizing the capabilities of your replica.
• Advanced Features:
  • Stepless speed regulation for precise RPM control.
  • High strength, heat-treated pinion for durability.
  • Intelligent protection features to prevent overheating, low voltage, and locked rotor issues.

---

Installation & Tech Tips:

1. Pre-Fit Wire Spade Connectors:
   • Remove heat shrink from tabs.
   • Ensure mosfet wire connectors fit well on motor leads.
   • If the fit is tight, loosen the connectors using tweezers, a small flathead screwdriver, or an alternative motor.
   • Test for smooth fitting before final installation.
2. Supporting Parts for Optimal Performance:
   • Reduced Weight Assembly:
     • Use FPS Softair Piston Head or polymer piston head for builds above 33 RPS.
     • For DSG builds, pair with Real Deal AOE Mod Bonded Piston Assembly and FPS Softair Piston Head.
   • Delay Chip:
     • For single-sector gear builds, use the Real Deal High-Speed Delay Chip to ensure flawless auto feeding.
   • Short Stroking:
     • Remove 1-2 teeth from the pickup side of the sector gear for single-sector builds to reduce PME (Pre-Mature Engagement), especially during aggressive semi-auto or auto firing.
3. Avoid Reverse Polarity:
   • Do not connect positive wires to the negative tab or vice versa.
   • Reversed polarity will damage the ESC board.

---

Product Specifications:

• Speed Range:
  • 39K RPM with stepless regulation from 50%–100%.
  • Adjustable for high-FPS builds, DMRs, or LMGs.
  • Use caution when adjusting; do not apply excessive pressure.
• Pinion Gear:
  • High-strength, heat-treated "D" style pinion for easy removal and replacement.
  • Thread-locked pinion for secure installation, preventing slippage into the gearbox.
• Tower Design:
  • 9.6mm diameter tower sleeve.
  • Dual bearing tower (4 total bearings).
• Thermal Efficiency:
  • High thermal efficiency ensures cooler operation.
  • Higher power output with lower amp draw.
  • Results in longer battery life and increased motor efficiency.
• Intelligent Protection:
  • Overheat protection.
  • Low voltage protection.
  • Locked rotor protection to prevent gearbox damage.
• Construction:
  • CNC aluminum body.
  • Long-type shaft.

---

Compatibility:

• Compatible with all current mosfets:
  • Jefftron, Perun, Gate.
  • For Perun systems, start with AB on level 0.
